Project Description

2835 CV LED STRIPS

2835-120 leds

Features

2835 led strip, it use high quality 22-24lm/led, led max current 60mA,only use 30mA, 40mA.,50mA/led for strip according different customer need, make sure its reliable quality, double layer PCB, DC12V or 24V, CRI80, CRI90, CRI95 type available.LED used reasonable current, make sure less light decline, longer lifetime
144pcs leds/m type around 2800lm/m, 168pcs leds/m type around 3200lm/m Led max current:60mA/led, while only use 40mA/50mA for different type Using 40mA, each led have 15-16lm/led, using 50mA,each led have 17-18lm/led

Parmeters

Type SL-F2835-60-*-12/24-8/10
LED Type SMD2835
LED Q’ty/m 60pcs
Input DC12/24V
Color 2700k/3000k/4000k/6000k
Power/m 9.6/12w
PCB Width 8/10mm
Lm/m 960/1100Lm
Cuttable Size 100mm/24V
IP Grade IP65/IP67/IP68
Length 5m/roll
Type SL-F2835-120-*-12/24
LED Type SMD2835
LED Q’ty/m 120pcs
Input DC12/24V
Color 2700k/3000k/4000k/6000k
Power/m 19.2/24w
PCB Width 10mm
Lm/m 1850/2100Lm
Cuttable Size 50mm/24V
IP Grade IP65/IP67/IP68
Length 5m/roll
Type SL-F2835-140-*-24
LED Type SMD2835
LED Q’ty/m 140pcs
Input DC24V
Color 2700k/3000k/4000k/6000k
Power/m 24w
PCB Width 10mm
Lm/m 2500Lm
Cuttable Size 50mm/24V
IP Grade IP65/IP67/IP68
Length 5m/roll
Type SL-F2835-144-*-24
LED Type SMD2835
LED Q’ty/m 144pcs
Input DC24V
Color 2700k/3000k/4000k/6000k
Power/m 28.8w
PCB Width 15mm
Lm/m 2800Lm
Cuttable Size 62.5mm/24V
IP Grade IP65/IP67/IP68
Length 5m/roll
Type SL-F2835-168-*-24
LED Type SMD2835
LED Q’ty/m 168pcs
Input DC24V
Color 2700k/3000k/4000k/6000k
Power/m 38w
PCB Width 20mm
Lm/m 3200Lm
Cuttable Size 35.7mm/24V
IP Grade IP65/IP67/IP68
Length 5m/roll

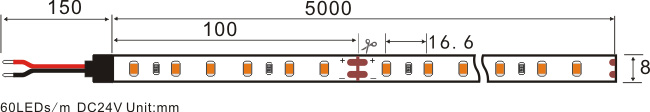

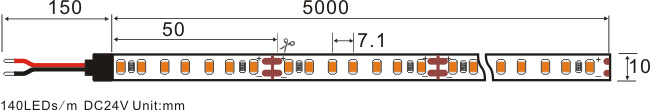

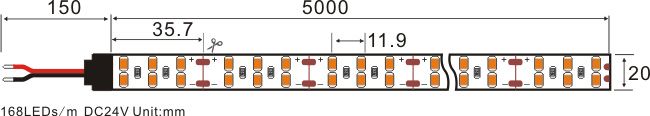

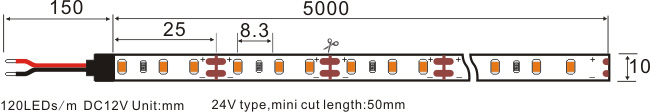

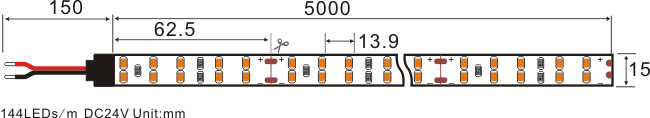

Dimensions

Waterproof Type
