3014 CONSTANT VOLTAGE STRIPS

Features

CRI80, CRI90 type available
3014 led strip of us, use high quality 10-11lm/led, double layer PCB,CRI80 or CRI90 type available.70pcs leds/m,140pcs leds/m,204pcs leds/m type designed in 7 leds/group,

Higher efficiency than normal typeColor temperature : 2500-2700K, 2800-3200K, 4000-4500K,5700-6500K

Parmeters

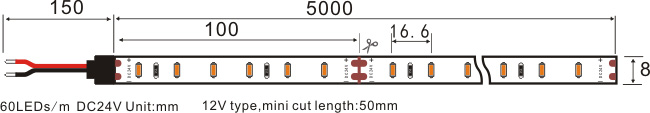

3014 Single Color-60LED/s Strip

TYPE	SL-3014-60-*-12/24
LED TYPE	SMD3014
LED Q’TY/M	60pcs
INPUT	DC12/24V
COLOR	2700k/3000k/4000k/6000k R/G/B/Y
POWER/M	7.2w
PCB WIDTH	8mm
LM/M	600Lm
CUTTABLE SIZE	50mm/12V
IP GRADE	IP65/IP67/IP68
LENGTH	5m/roll

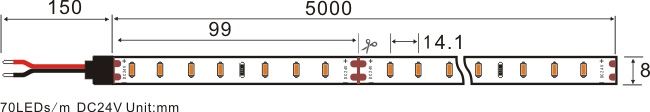

3014 Single Color-70LED/s Strip

TYPE	SL-3014-70-*-12/24
LED TYPE	SMD3014
LED Q’TY/M	70pcs
INPUT	DC24V
COLOR	2700k/3000k/4000k/6000k R/G/B/Y
POWER/M	7.2w
PCB WIDTH	8mm
LM/M	700Lm
CUTTABLE SIZE	100mm/24V
IP GRADE	IP65/IP67/IP68
LENGTH	5m/roll

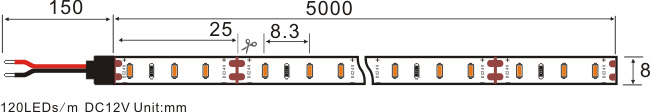

3014 Single Color-120LED/s Strip

TYPE	SL-3014-120-*-12/24
LED TYPE	SMD3014
LED Q’TY/M	120pcs
INPUT	DC12/24V
COLOR	2700k/3000k/4000k/6000k R/G/B/Y
POWER/M	14.4w
PCB WIDTH	5/8mm
LM/M	1200Lm
CUTTABLE SIZE	50mm/24V
IP GRADE	IP65/IP67/IP68
LENGTH	5m/roll

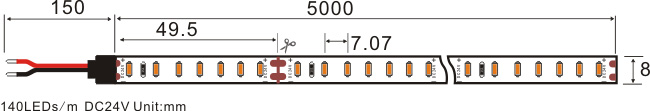

3014 Single Color-140LED/s Strip

TYPE	SL-3014-140-*-24
LED TYPE	SMD3014
LED Q’TY/M	140pcs
INPUT	DC24V
COLOR	2700k/3000k/4000k/6000k R/G/B/Y
POWER/M	14.4w
PCB WIDTH	10mm
LM/M	1400Lm
CUTTABLE SIZE	25mm/12V
IP GRADE	IP65/IP67/IP68
LENGTH	5m/roll

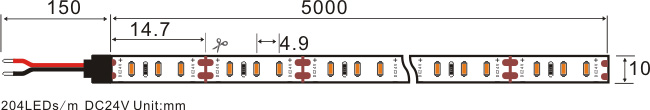

3014 Single Color-204LED/s Strip

TYPE	SL-3014-204-*-12/24
LED TYPE	SMD3014
LED Q’TY/M	204pcs
INPUT	DC12/24V
COLOR	2700k/3000k/4000k/6000k R/G/B/Y
POWER/M	20.4w
PCB WIDTH	10mm
LM/M	2040Lm
CUTTABLE SIZE	7.3mm/12V
IP GRADE	IP65/IP67/IP68
LENGTH	5m/roll

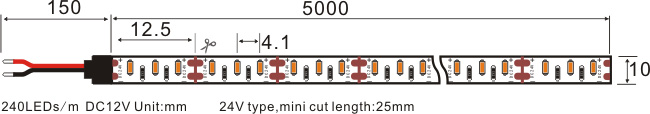

3014 Single Color-240LED/s Strip

TYPE	SL-3014-240-*-12/24
LED TYPE	SMD3014
LED Q’TY/M	240pcs
INPUT	DC12/24V
COLOR	2700k/3000k/4000k/6000k R/G/B/Y
POWER/M	24w
PCB WIDTH	10mm
LM/M	2400Lm
CUTTABLE SIZE	25mm/24V
IP GRADE	IP65/IP67/IP68
LENGTH	5m/roll
