Project Description
SUPER SLIM PCB STRIPS
Features
5mm strip is specially meet the need for narrow profile
Ra> 80 >90 or >95 available.Super narrow PCB with 3528 2835 3014 5630 different type,all led of us use top material,big chip with brand name,Epistar or Sanan chip, SAMSUNG chip for option, high quality goldern wire,phosphor,copperstent standard SCDM< 5 , can special make SCDM< 3 ,Ra> 80 >90 or >95 available.
Parmeters
| TYPE | SL-F2835-120W-24-5 |
| LED TYPE | SMD2835 |
| LED Q’TY/M | 120pcs |
| INPUT | DC12/24V |
| COLOR | 2700k/3000k/4000k/6000k |
| POWER/M | 14.4w |
| PCB WIDTH | 5mm |
| LM/M | 1550Lm |
| CUTTABLE SIZE | 25mm/24V |
| IP GRADE | IP65/IP67/IP68 |
| LENGTH | 5m/roll |
| TYPE | SL-F3528-120W-12/24-5 |
| LED TYPE | SMD3528 |
| LED Q’TY/M | 120pcs |
| INPUT | DC12/24V |
| COLOR | 2700k/3000k/4000k/6000k |
| POWER/M | 9.6w |
| PCB WIDTH | 5mm |
| LM/M | 800Lm |
| CUTTABLE SIZE | 50mm/24V |
| IP GRADE | IP65/IP67/IP68 |
| LENGTH | 5m/roll |
| TYPE | SL-F5630-60W-12/24-6 |
| LED TYPE | SMD5630 |
| LED Q’TY/M | 60pcs |
| INPUT | DC12/24V |
| COLOR | 2700k/3000k/4000k/6000k |
| POWER/M | 12w |
| PCB WIDTH | 6mm |
| LM/M | 1350Lm |
| CUTTABLE SIZE | 50mm/12V |
| IP GRADE | IP65/IP67/IP68 |
| LENGTH | 5m/roll |
| TYPE | SL-F3014-120W-12/24-5 |
| LED TYPE | SMD3014 |
| LED Q’TY/M | 120pcs |
| INPUT | DC12/24V |
| COLOR | 2700k/3000k/4000k/6000k |
| POWER/M | 12w |
| PCB WIDTH | 6mm |
| LM/M | 1100Lm |
| CUTTABLE SIZE | 50mm/24V |
| IP GRADE | IP65/IP67/IP68 |
| LENGTH | 5m/roll |

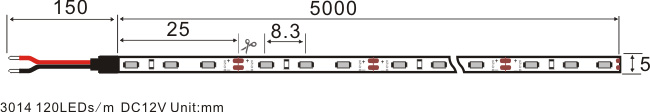

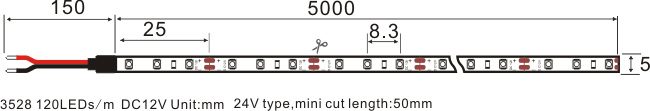

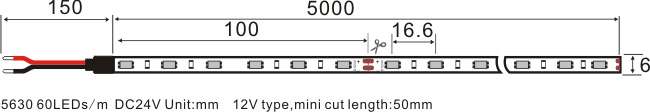

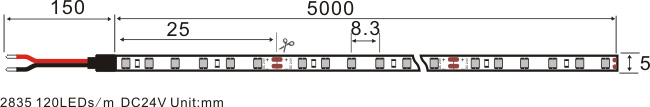

Dimensions
Waterproof Type
