Project Description
2216 HIGH CRI STRIPS
Features
High quality 24V 2216 led strip lights,6-7lm/led, same brightness as 3528led, CRI>90 Super slim led, so can make it in high density design- 300pcs leds/m, 420pcs leds/m Uniform light effect without spot for profile
Parmeters
| Type | SL-F2216-420-*-24-cv |
| LED Type | SMD2216 |
| LED Q’ty/m | 420pcs |
| Input | DC24V |
| Color | 2700k/3000k/4000k/6000k |
| Power/m | 24w |
| PCB Width | 10mm |
| Lm/m | 3300Lm |
| Cuttable Size | 15mm/24V |
| IP Grade | IP65/IP67/IP68 |
| Length | 5m/roll |
| Type | SL-F2216-300-*-24-cv |
| LED Type | SMD2216 |
| LED Q’ty/m | 300pcs |
| Input | DC24V |
| Color | 2700k/3000k/4000k/6000k |
| Power/m | 20w |
| PCB Width | 10mm |
| Lm/m | 2400Lm |
| Cuttable Size | 20mm/24V |
| IP Grade | IP65/IP67/IP68 |
| Length | 5m/roll |
| Type | SL-F2216-180-*-24-cv |
| LED Type | SMD2216 |
| LED Q’ty/m | 180pcs |
| Input | DC24V |
| Color | 2700k/3000k/4000k/6000k |
| Power/m | 14.4w |
| PCB Width | 10mm |
| Lm/m | 1400Lm |
| Cuttable Size | 33.3mm/24V |
| IP Grade | IP65/IP67/IP68 |
| Length | 5m/roll |
| Type | SL-F2216-120-*-24-cv |
| LED Type | SMD2216 |
| LED Q’ty/m | 120pcs |
| Input | DC24V |
| Color | 2700k/3000k/4000k/6000k |
| Power/m | 9.6w |
| PCB Width | 10mm |
| Lm/m | 960Lm |
| Cuttable Size | 100mm/24V |
| IP Grade | IP65/IP67/IP68 |
| Length | 5m/roll |

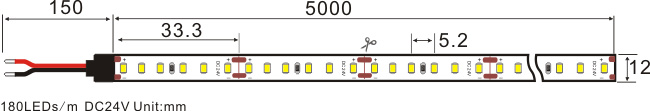

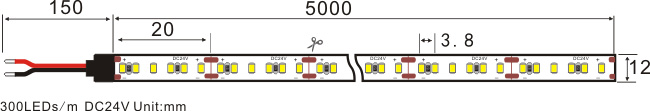

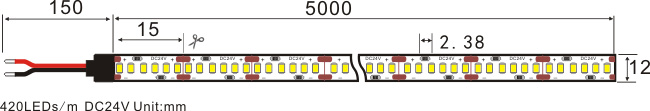

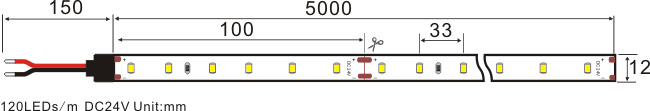

Dimensions
Waterproof Type
